BundleTutor mobil - Transporter for heat exchanger tube bundles

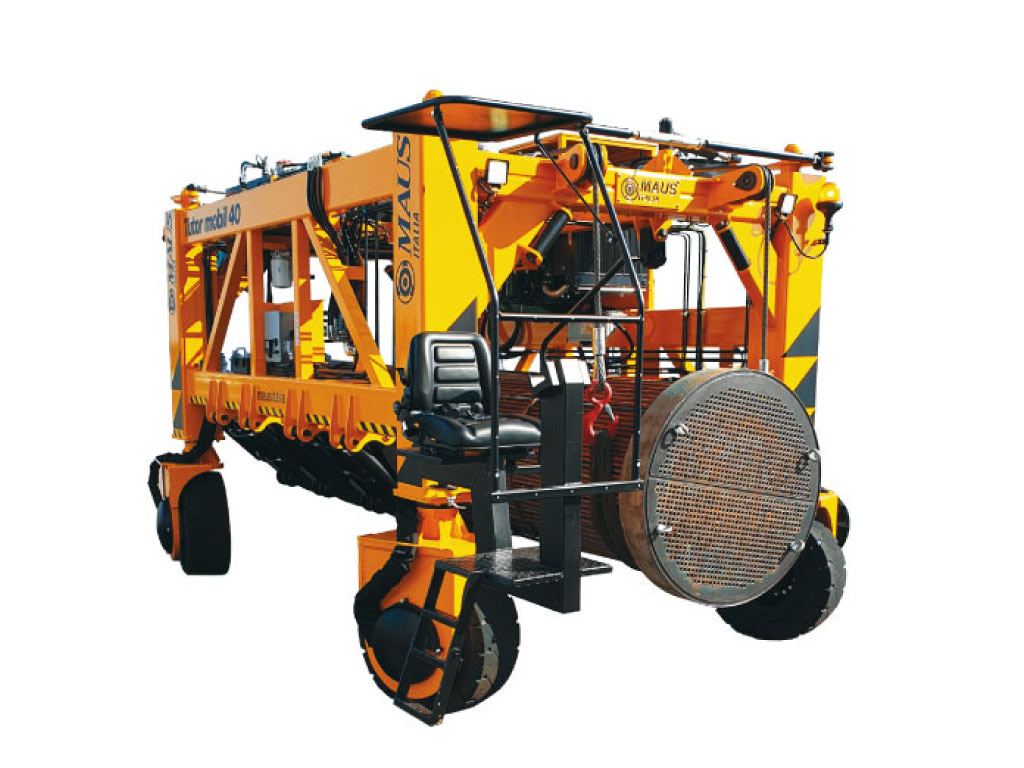

BundleTutor mobil For the quick, safe and secure independent handling of the tube bundle

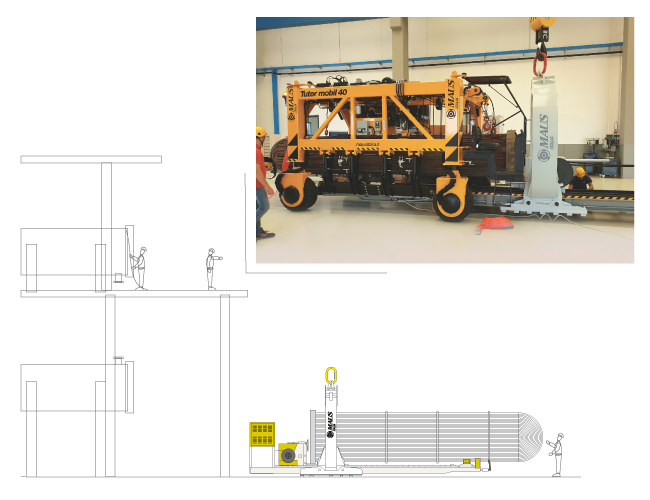

MAUS ITALIA offers the BundleTutor mobil for the handling of tube bundles independently of cranes and trucks inside the plant, speeding up loading and unloading of Mef express HT bundle extractors and transportation from the extraction point to the washing area or maintenance workshop.
The MAUS ITALIA team is available to design custom solutions to provide solutions for extreme cases and ATEX explosion proof and NAVY versions for the o shore market.
Important features
Nimble

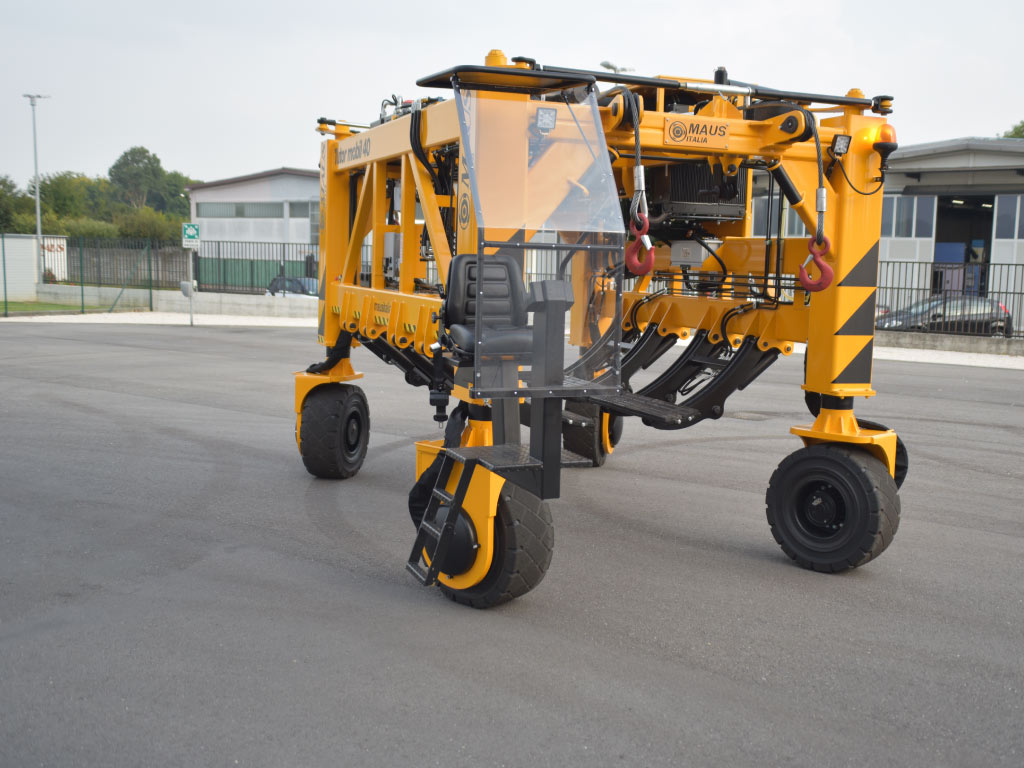

The BundleTutor mobil is an evolved 4x4 with front/rear driving and steering wheels that allow extremely small turning circles and rapid positioning. Independent shock absorbers also allow it to compensate for unevenness in the road surface.
Indipendent
Neither trucks nor cranes are required for handling the tube bundle inside the plant for loading and unloading.
Total protection of the bundle
The BundleTutor mobil sustain and supports the tube bundle during handling using two complementary and independent feature (clamps and lifting slings), ensuring perfect support along its longitudinal axis and eliminating tensions and deformations.
Freedom of movement

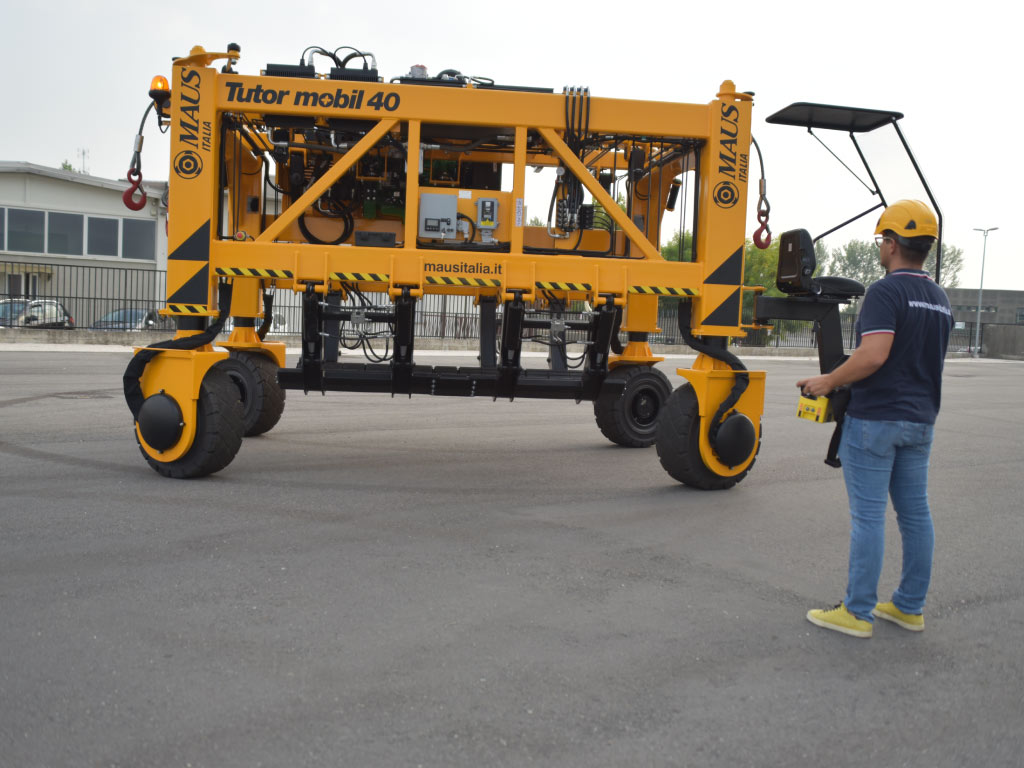

All movement and adjustment commands are managed by remote control.
Compensates for errors

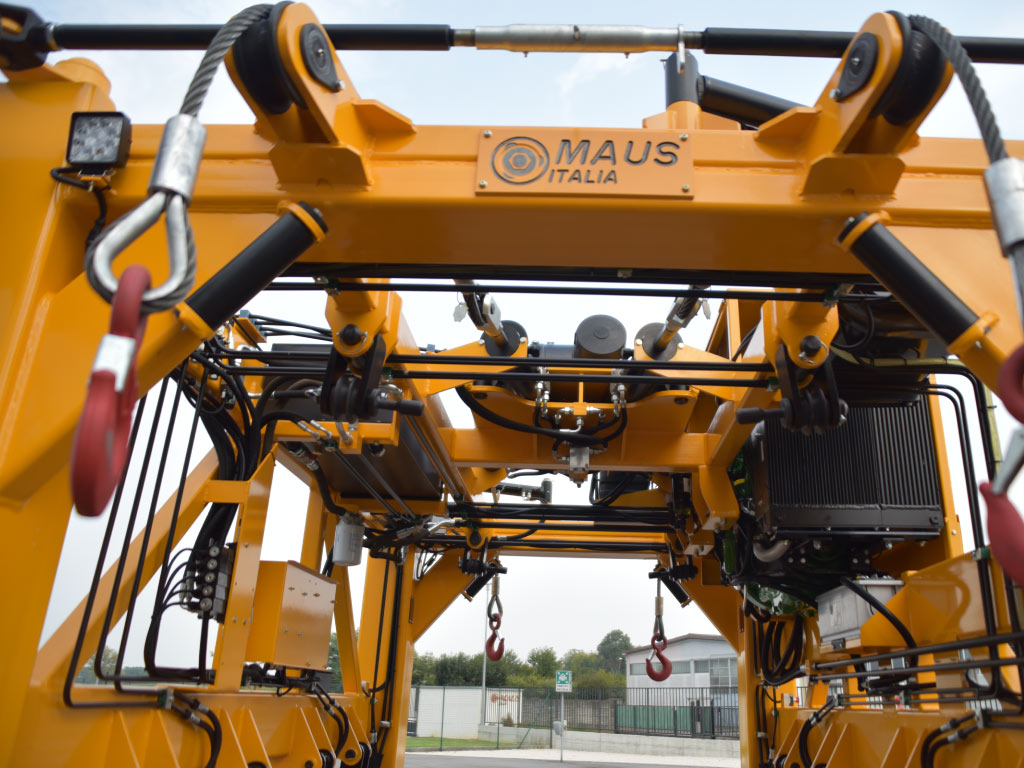

The BundleTutor mobil, thanks to its independent adjustable ropes, compensate (through the rotation of the tube bundle) for any potential positioning errors during setting down on the extractor. This facilitates its subsequent insertion into the shell of the heat exchanger.
Adapts according to need
MAUS ITALIA can, on request and after technical verification, design the BundleTutor mobil for bundles with measurements and weights different from its standard product.

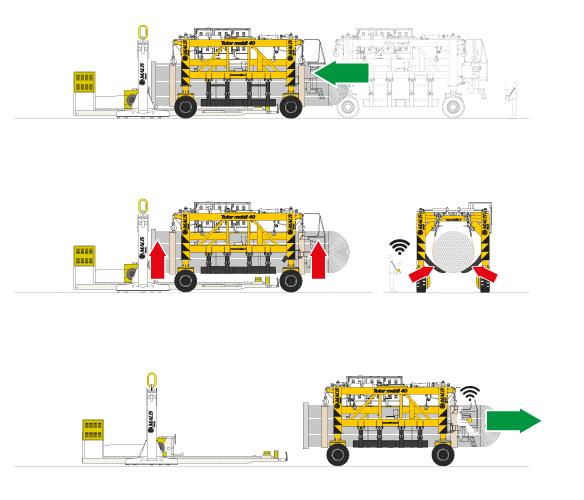

Tube bundle handling

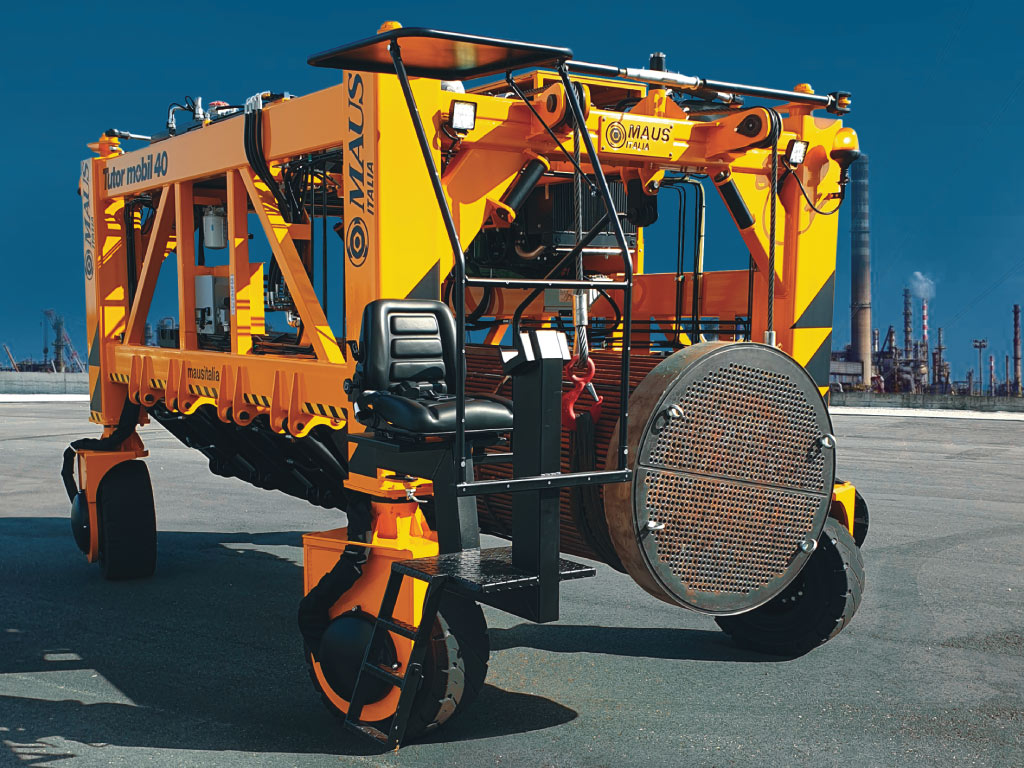

The BundleTutor mobil is used for the handling of tube bundles inside the plant in combination with a MAUS ITALIA tube bundle extractor from the Mef express HT series
The BundleTutor mobil aligns easily (thanks to the 4 driving and steering wheels) and surmounts the Mef express HT which carries the tube bundle which has just been extracted;

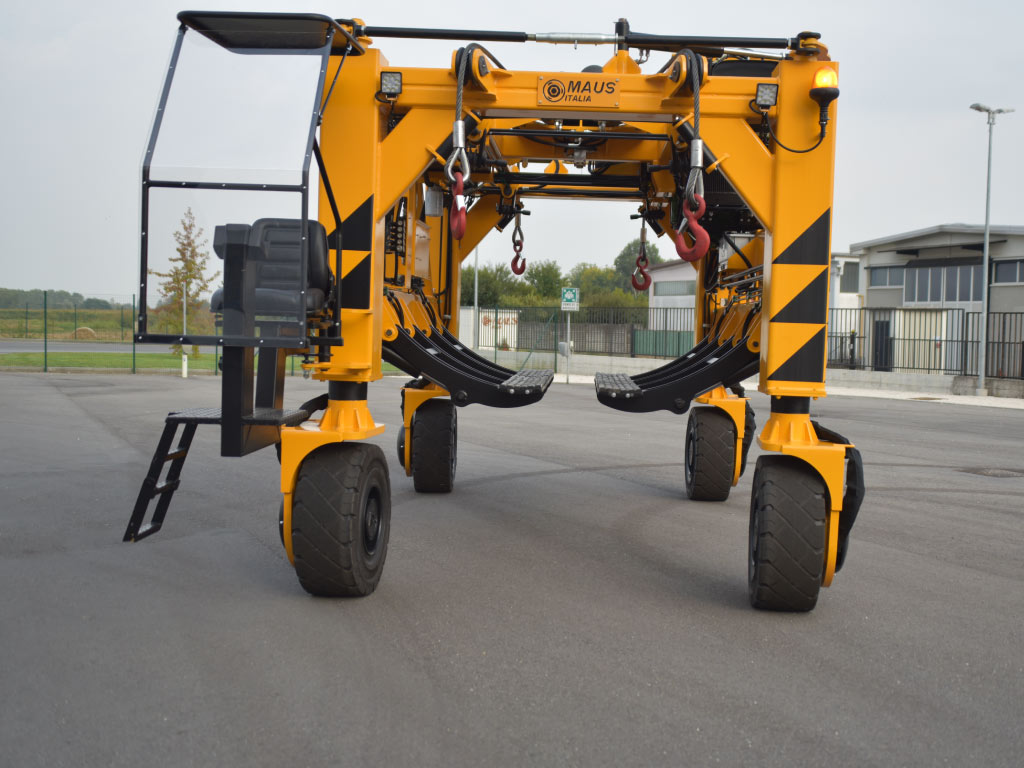

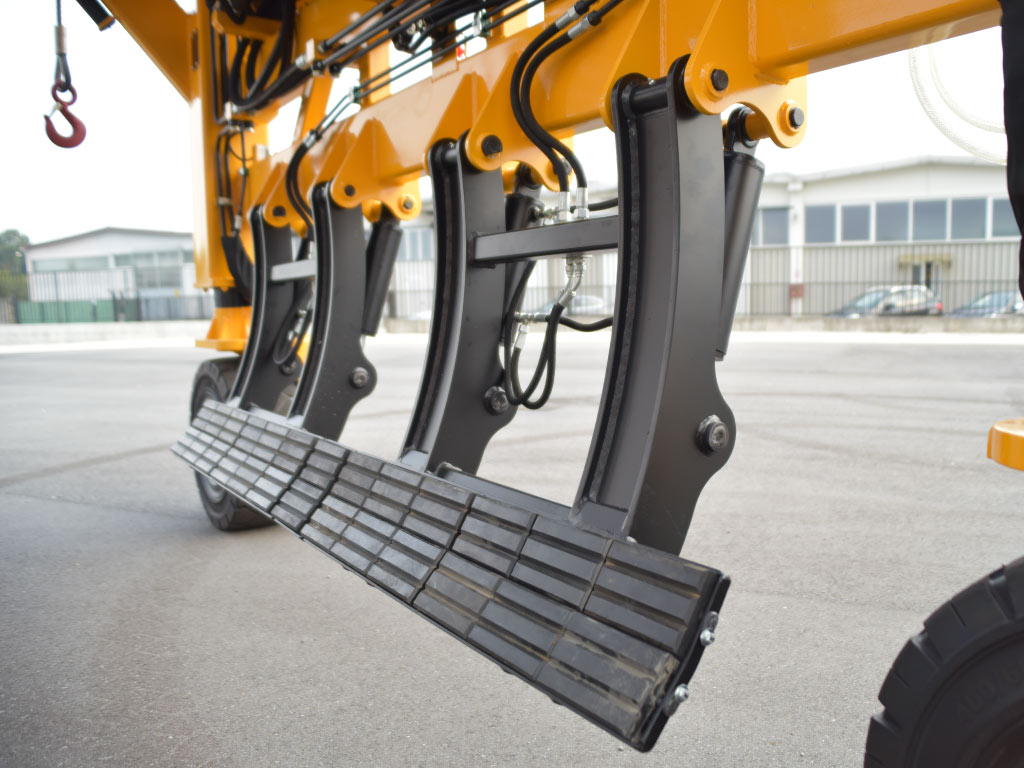

Using the support slings which are controlled by independent ropes, the BundleTutor mobil harnesses the tube bundle and lifts it with extreme care. Working symmetrically, the clamps centre and encircle the bundle, ensuring that it is balanced along its longitudinal axis;
The tube bundle is transported and unloaded at its destination inside the plant in complete safety for scheduled maintenance without the use of trucks or cranes.

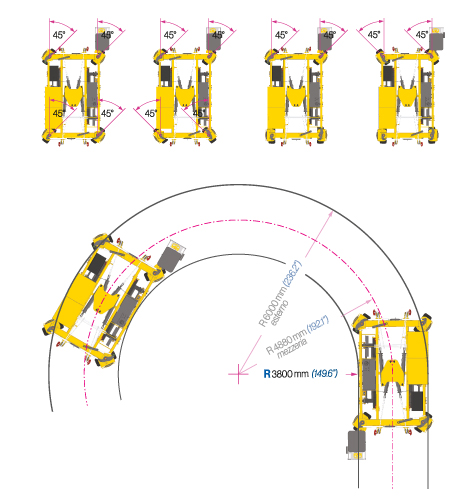

Agility: extremely small turning circles
Particular attention has been paid to the agility of the BundleTutor mobil which, with 4-wheel drive and steering, is able to navigate the journey within the plant.

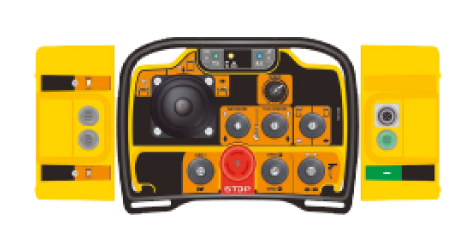

Wireless

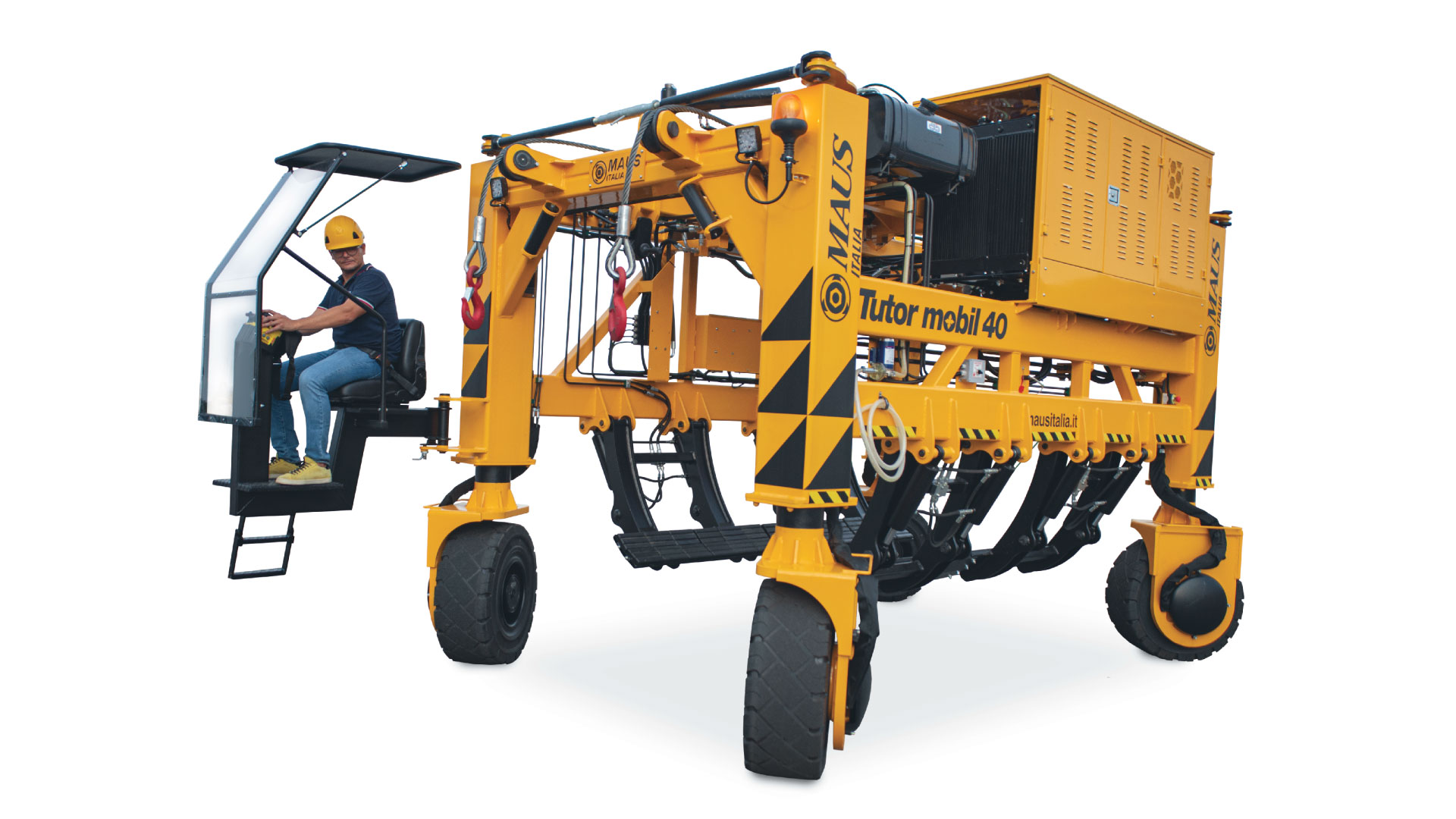

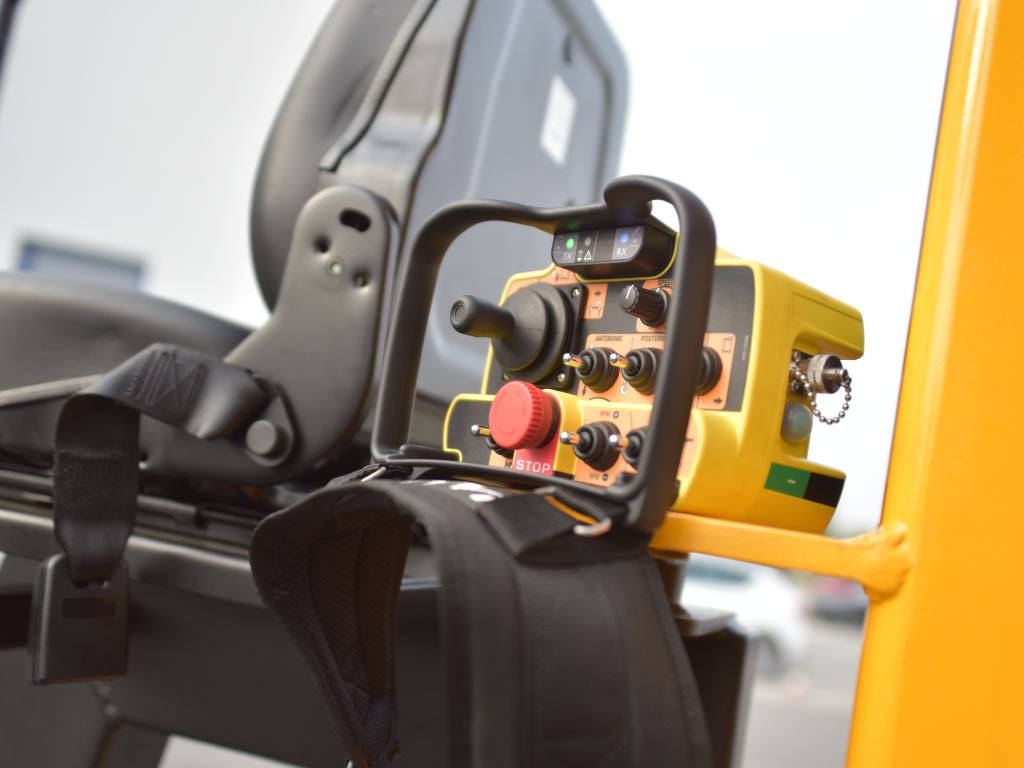

Removable driver’s seat with remote control housingWhen using the wireless remote control, the operator can choose whether to stay sitting comfortably in the driver’s seat or, walking alongside, accompany the BundleTutor mobil.
Product technical datasheet
If you would like all the technical information related to this product, please download the .pdf brochureor get in contact with us directly, our qualified personnel will answer to your queries.
